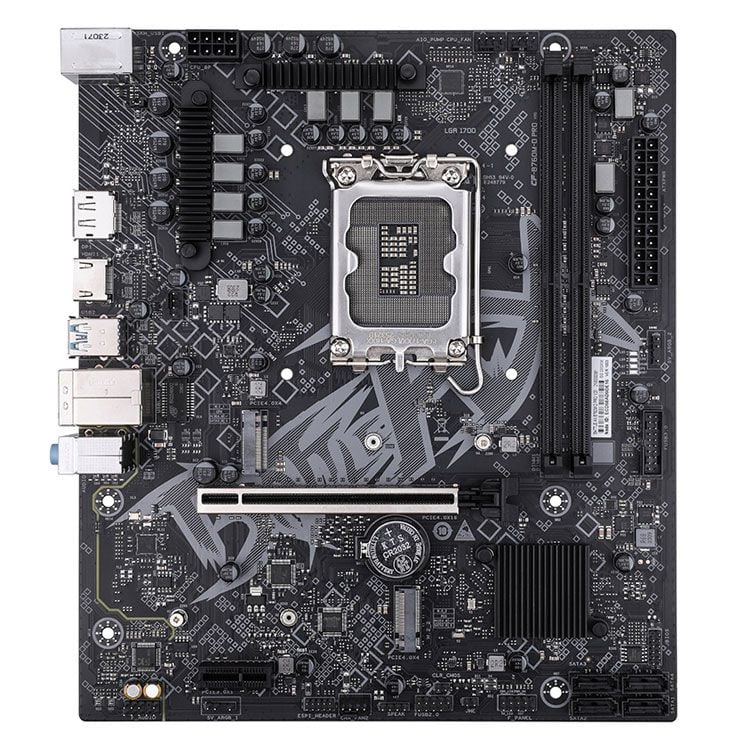

Mainboard Colorful Battle-AX B760M-D Pro V20 | Socket 1700, mATX, 2 khe DDR4

Categories: Bo mạch chủ Intel

| SKU

Price: 2,111,000

Mua trả gópThủ tục đơn giản

Tiêu chí mua hàng

  • Đội ngũ kỹ thuật tư vấn chuyên sâu
  • Thanh toán thuận tiện
  • Sản phẩm 100% chính hãng
  • Bảo hành tận nơi
  • Giá luôn cạnh tranh

Liên hệ với chúng tôi

Thông số kỹ thuật

⚙ Thông số kỹ thuật:

    Thông số     Chi tiết
Hãng sản xuất Colorful
Chipset Intel® B760
Socket LGA 1700 – 14th/13th and 12th, Pentium ® And Cylon ® processor
RAM DDR4 – 2 khe
Hỗ trợ tối đa RAM 64 GB
Khe cắm PCI-E
  • 1 PCIe 4.0 x16 slot
  • 1 PCIe 3.0 x1 slot
Kết nối RTL8125 2.5G network card
Khe cắm M.2 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices
– M2_ 1 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4, CPU channel)
– M2_ 2 slot: support 2242/2280 M.2 SSD (PCIe 4.0 x4/Optane, PCH channel)
Cổng I/O

1×CPU fan pin
2×system fan pins
1×water cooling pump pin
1×USB 2.0 pin expandable 2 USB 2.0 Type-A interfaces
1×USB 3.2 Gen 1 pin expandable 2 USB 3.2 Gen 1 Type-A interfaces
2×5V 3-pin ARGB pins
1×front audio pin
1×front panel pin
1×speaker pin
1×ME write protection jumper
1×clear CMOS jumper
1×BIOS burner pin
1×POST card pin
1×PS/2 call Wake up control jumper

Kích thước M-ATX
240mm x 207mm
Trọng lượng
Tính năng khác
  • Tích hợp chip mạng LAN tốc độ cao Realtek 2.5G
  • Hỗ trợ phần mềm iGame Center
